Appliances
Efficient kitchen design means every component has the space to work properly. If the dishwasher is open, for example, you can still open the door to the fridge. If one person is busy at the sink, another can be using the stove. The golden rule: always put a cabinet between appliances (never place two appliances side by side).

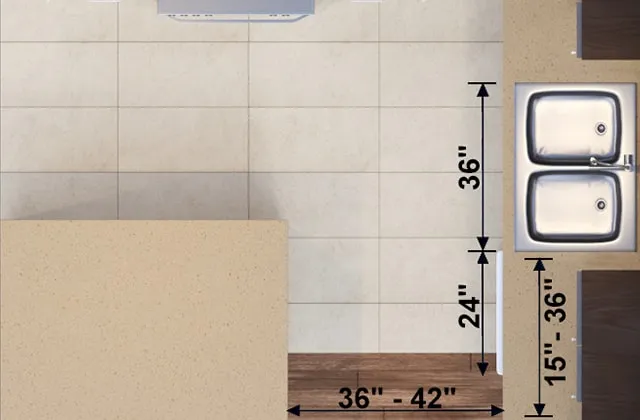

Sink
Measurements
Single basin: cabinet 24" wide
Double basin: cabinet 36" wide (minimum)
Clearances
On each side: between 18" and 36" of countertop landing area

Dishwasher
Measurements
Width: 24"
Height: 35"
Clearances
In front: 36" to 42"
Each side: 21" from perpendicular cabinets
Note: The dishwasher should be located close to the sink.

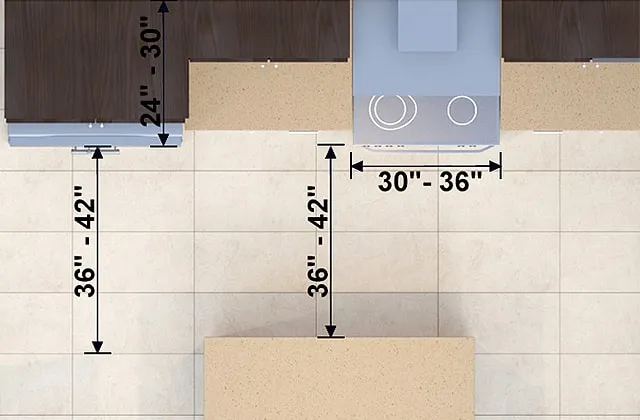

Refrigerator
Refrigerator
Measurements
Width: 30" to 36"
Height: 70" to 72"
Depth: 24" to 30"
Clearances
Sides and back: 2"
Front: 36" to 42"
Opening side: 15" of countertop landing area

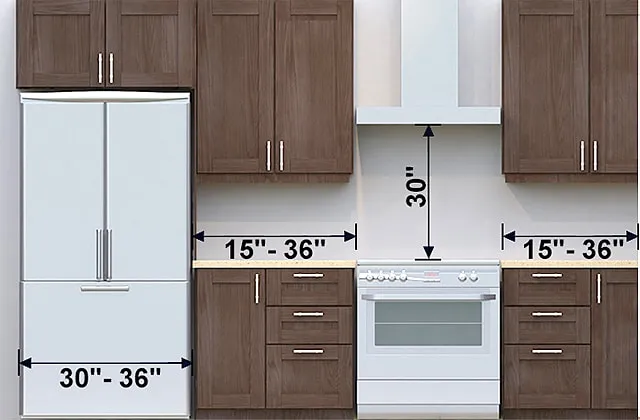

Range or Cooktop
Measurements
Width: 30" to 36"
Space between bottom cabinets: 31"
Space between countertop: 30 ½"
Clearances
Above the cooking surface
Electric range: 30"
Gas range: 36"
Each side: between 15" and 36" of countertop landing area

Built-in oven
Measurements
Width: 33"
Clearances
Each side and behind: 2"
In front: 36" to 42"
